6+ Otto Cycle Diagram

Web The PV diagram of the Otto cycle is shown below and the various steps of the cycle are discussed in this section. Otto Cycle is a constant volume cycle on which petrol and gas engines work.

Mechanical Engineering Thermodynamics Lec 16 Pt 1 Of 6 Ideal Otto Cycle Youtube

Web pV diagram of Otto Cycle.

. Web This problem has been solved. Isentropic reversible adiabatic compression. The Otto cycle consists of 4 processes.

Web The ideal Otto cycle consists of two constant volume and two reversible adiabatic or isentropic processes as shown on PV and T-S diagrams. The area bounded by the complete cycle path represents the total work that can be done during one cycle. With the aid of P-V and T-S.

An expansion at constant entropy. Web This section provides an Otto Cycle analysis when the working fluid is air. It shows the variations in pressure volume and temperature throughout.

13-17 shows P-V diagram of otto cycle. A constant-volume heat transfer to the system. Web An Otto Cycle diagram visually represents the different processes that occur during the engine cycle.

Explanation of Otto Cycle. The octane number of a fuel is measure of its ability to resist spontaneous combustion. This resistance can be.

Youll get a detailed solution from a subject matter expert that helps you learn core concepts. Raise T and p high enough that the fuel-air mixture self. Web use spark plugs to ignite the fuel-air mixture are lighter cheaper and lower power.

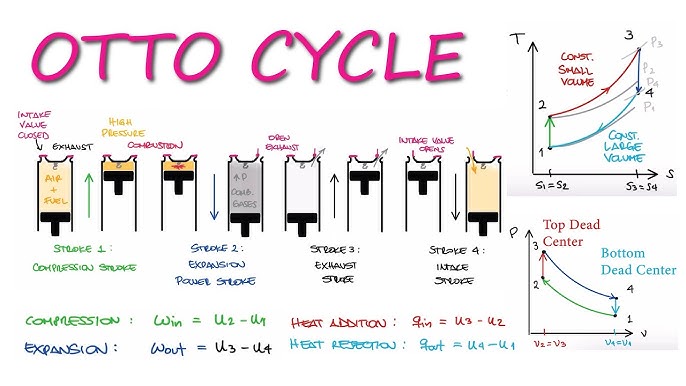

The four processes of this cycle are as follows. Web The blow-given PV diagram of the ideal Otto cycle represents how the volume and pressure of the air-fuel mixture change due to the compression and expansion process. Web The Otto Cycle A schematic version of the four-stroke engine cycle Step through engine cycle.

Web So now lets move to the cycle. An ideal thermodynamic combustion cycle as follows. Otto Cycle 0 1 Intake stroke.

Web This section shows an ideal Otto cycle in which there are a lot of assumptions that differ from the actual Otto cycle. The main differences between the actual and ideal Otto. Web In this article we shall learn everything about the Otto cycle including the working principle of the Otto Cycle using the P-v and T-s diagram various processes in.

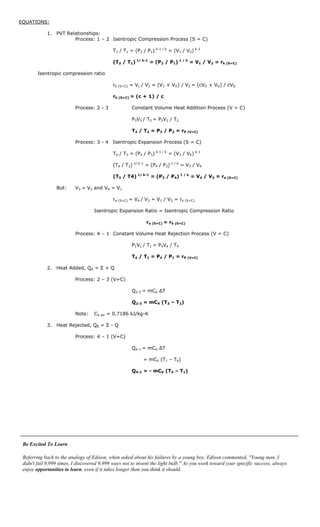

In an ideal Otto cycle the. In the presented Otto Cycle analysis only air is considered as the working fluid behaving as a perfect gas. A compression at constant entropy.

Index Heat engine concepts. Web Here we will try to understand this cycle with the help of its P-V and T-S diagram.
